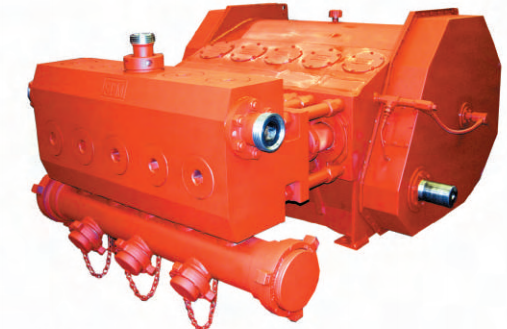

QWS 2500 plunger fracturing pump assembly

The QWS 2500 was developed to handle harsh frac conditions, as seen in the premier North American shale plays. The QWS2500 is designed towithstand 10 hours of operation up to 6 days a week while maintaining a high performance rod load capacity that is necessary for pumping in harsh conditions.

APPLICATIONS: Fracturing.

Rated Max. Brake HP..........................2,500 BHP (1,866 Kw)

Maximum Rod Load......................192,325 Lbs. (87,239 kg)

Stroke Length................................................8" (203.2 mm)

Gear Ratio................................................................6.353:1

Length...................................................84 3/4" (2,153 mm)

Width.....................................................73 7/8" (1,877 mm)

Height....................................................43 3/8" (1,102 mm)

Weight Dry (Approx.)..............................16,000# (7,257 kg)

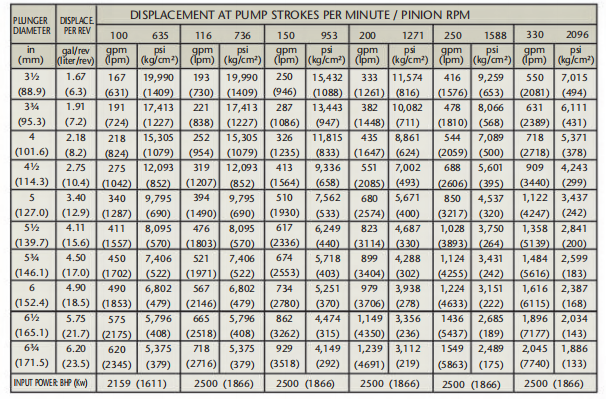

QWS2500 Performance Data
