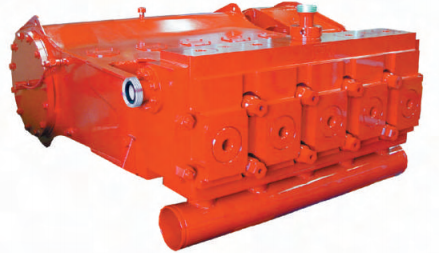

QWS3500 plunger fracturing pump assembly

The QWS3500 is the most powerful well service pump on the market. With 3500 BHP, the pump is designed to eliminate the number of units required on a site to reach its high pressure pumping capabilities, reducing the user’s operational costs.

APPLICATIONS: Fracturing.

Rated Max. Brake HP..........................3,500 BHP  (2,609 Kw)

Maximum Rod Load...................260,000 Lbs. (117,934 kg)

Stroke Length.................................................10" (254 mm)

Gear Ratio................................................................7.091:1

Length.........................................................94" (2,388 mm)

Width.........................................................108" (2,743 mm)

Height.............................................................36" (914 mm)

Weight Dry (Approx.)...........................24,000# (10,866 kg)

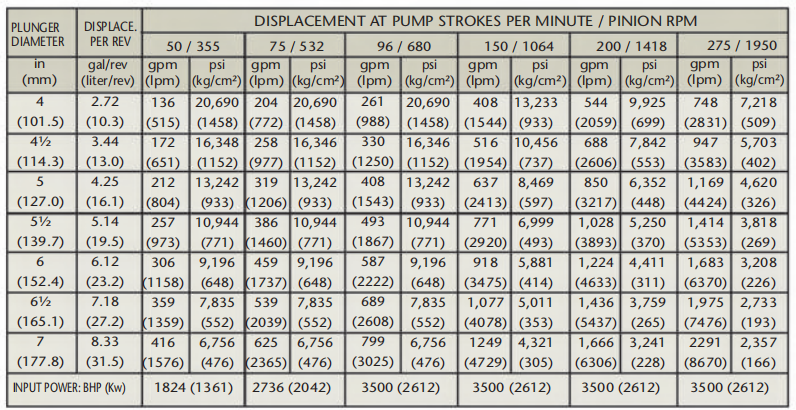

QWS3500 Performance Data
